on-board resources:
1- 2 RS232 serial interface (use direct serial line,
including
serial support all the ISP download procedures)
2- 2 CAN bus communication interface
(CAN transceiver: SN65VHD230) :
3-RS485 communication interface
(485 transceiver: SP3485) :
4- RJ45-10/100M Ethernet network interface
(PHY Ethernet: DP83848) :
5-DA output interface (can do sound card
USB speakers and on-board experiment,
the speaker output driver),
6-AD input interface (adjustable
potentiometer input),
7-color LCD display interface
(2.8 inches or 3.2 inch TFT 320X240 color LCD),
8-USB2.0 interface, USB host and USB
Device interface .
9- SD/MMC card (SPI) interface
(with FAT12, FAT16,provide FAT32 file system),
10- IIC interface (24LC02),
11-SPI serial FLASH interface (AT45DB161D)
12-two users buttons, 2 function
keys Reset button and INT0 buttons, eight LED
13-one to five key input rocker (Joystick)
14-serial ISP download function
(without setting jumpers),JTAG standard
download, simulation testing interface.
15 ,integrated USB emulator: simulation
and debug capabilities to support online and
support KEIL, IAR and other mainstream
development environment
16-external 5V power input power supply
or USB provide 5V power supply.
17-leads all the IO, user-friendly external circuit
to the secondary development of other applications
|
Items include:
*LPC1768 dev main board 1 pcs
*3.2" TFT LCD with touch panel 1 pcs
*USB wire 1 pcs
*5v power adaptor 1 pcs
Summary of LPC1768 Development Kit Features:

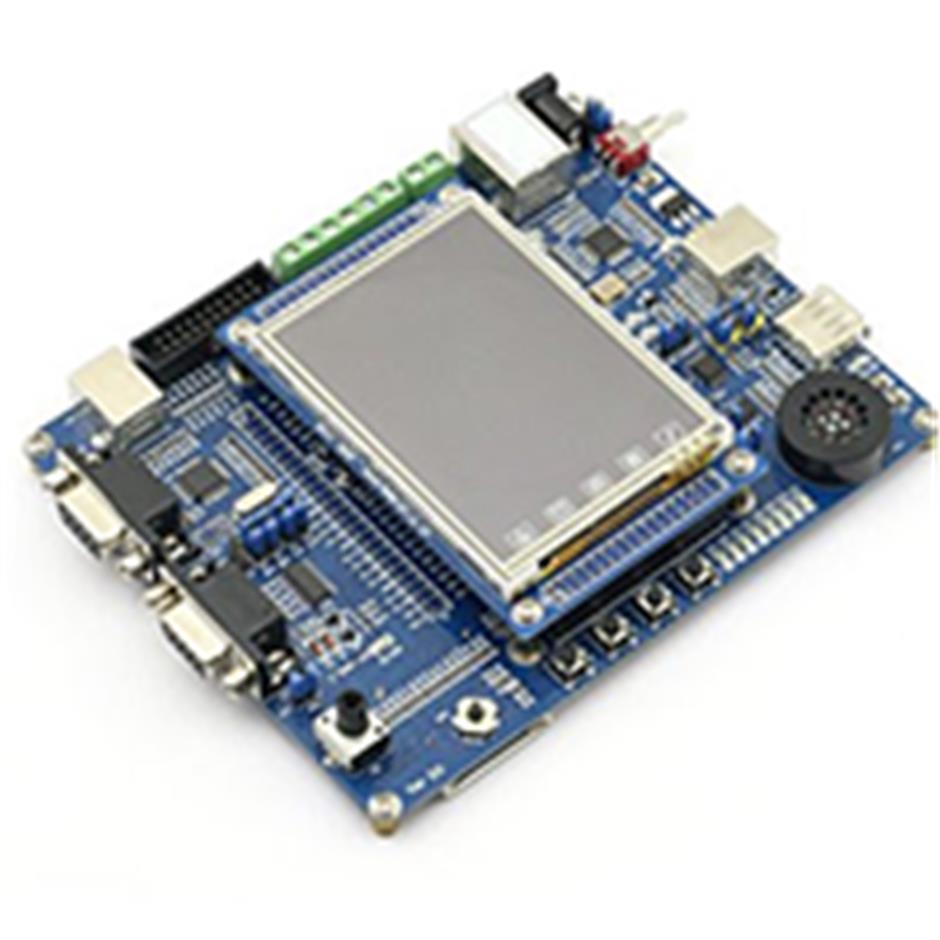

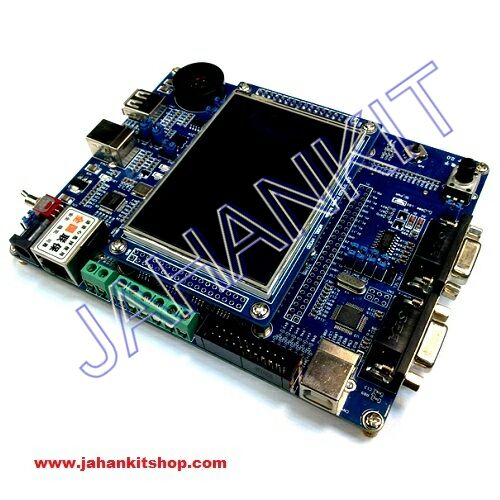

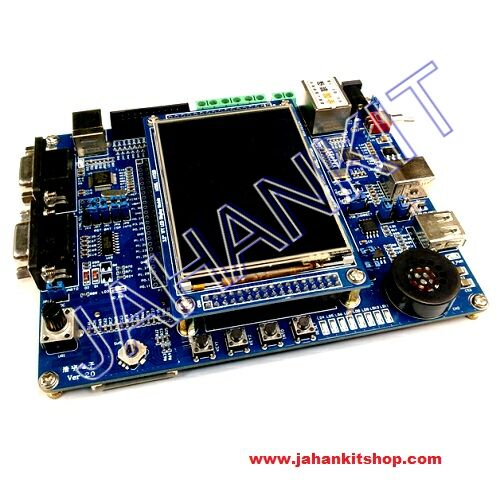

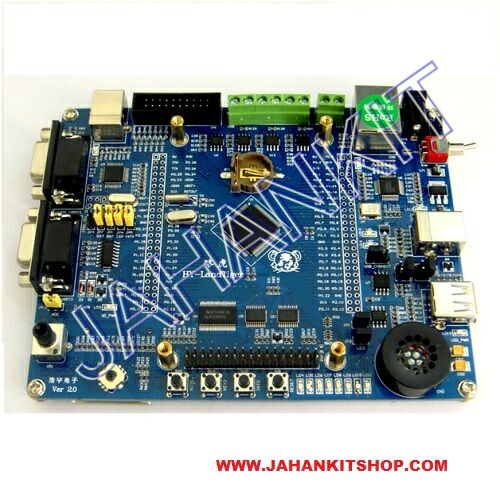

The LPC1768 Land Rover board with NXP's ARM
Cortex-M3 microcontroller has been designed to
make it as easy as possible to get started with
Cortex-M3.low-power 32-bit microprocessor
for instrumentation, industrial communications,
motor control, lighting control,alarm systems.
Land Rover development board on-board USB
emulator, supports USB2.0 Device, dual CAN
interfaces, RS-485 interface functions.
*512KB FLASH, 64KB SRAM.
*100 MHz ARM® Cortex-M3, and includesa
support eight areas of memory
protection unit (MPU)
*Built-nested vector interrupt controller
*support the SSP, UART, AD / DA, timer,
GPIO, etc., can be used for memory to
memory transfers
*standard JTAG test / debug interface
and debug serial
line and serial line tracking port option
*simulation trace module supports
real-time tracking
*4 low-power modes: sleep, deep sleep,
power-down, deep power-down
*single 3.3V power supply (2.4V - 3.6V)
*Operating temperature: -40 ° C - 85 ° C
*non-maskable interrupt (NMI) input
*On-chip integrated power-on reset circuit
*Built-in systems beat the timer (SysTick), to
facilitate the operating system migration.
|
