Tiny210 | S5PV210 ARM Cortex-A8 Board

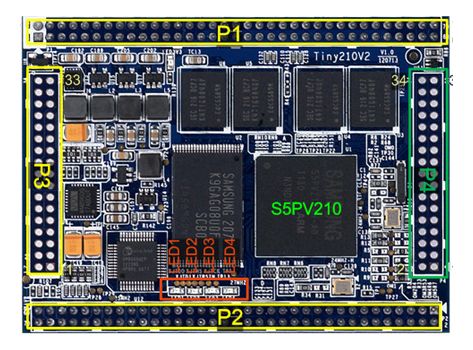

Specification: Stamp Module

• Dimension: 64 x 50 mm
• CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
• RAM: 512 MB, 32 bit Bus
• Flash: up to 1GB NAND Flash
• Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
• Analog Input and Output
• User Outputs: 4x LEDs
• Expansion headers (2.0 mm)
• Power: 2-6V
• OS Support
  • Windows CE 6
  • Linux
  • Android

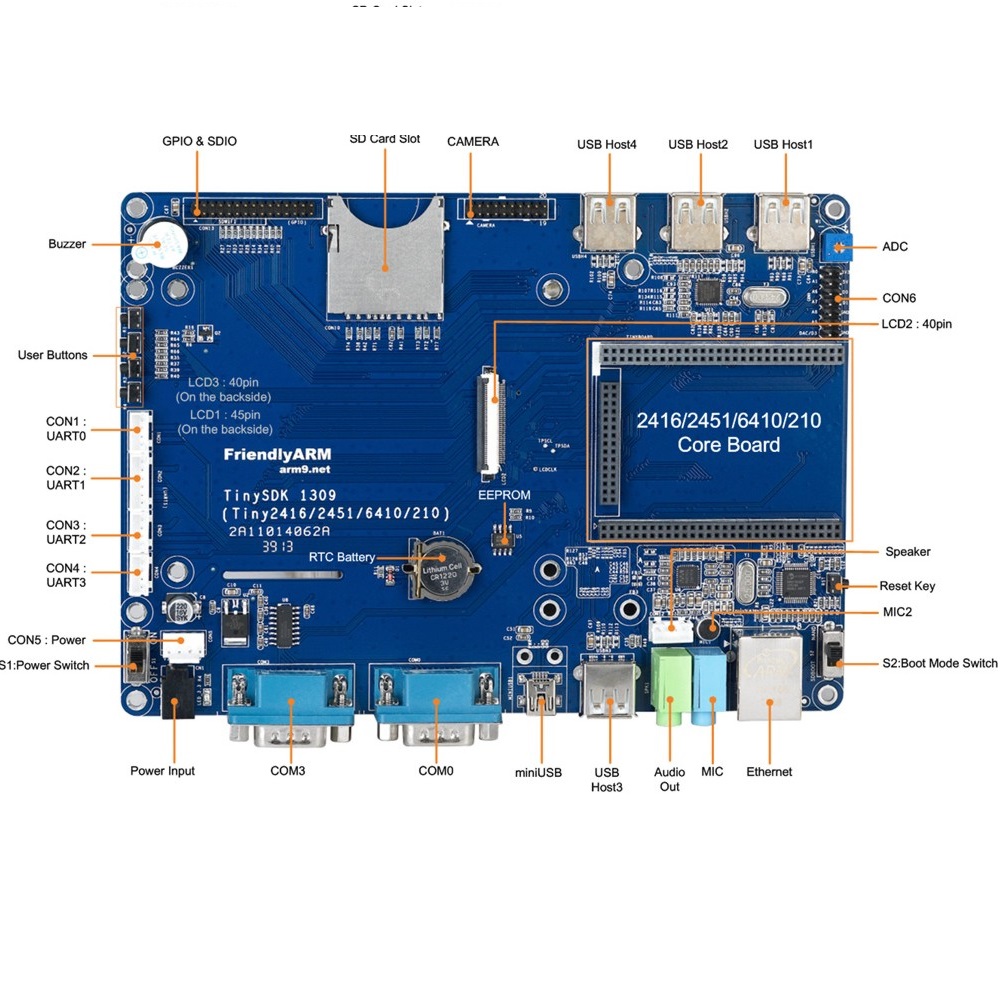

Specification: SDK-Board

• Dimension: 180 x 130 mm
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: DB9 connector (RS232), total: 4x serial port connectors)
• USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
• mini PCIe
• SIM Card
• Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
• Audio Input: 3.5mm jack + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• TV Output: AV Out
• TV Input: AV In
• LCD: 40 pin (2.0 mm), 40 pin FFC, 40 pin FFC and 45 pin FFC connector
• User Inputs: 8x buttons and 1x A/D pot
• Expansion headers (2.0 mm)
• Power: regulated 5V
